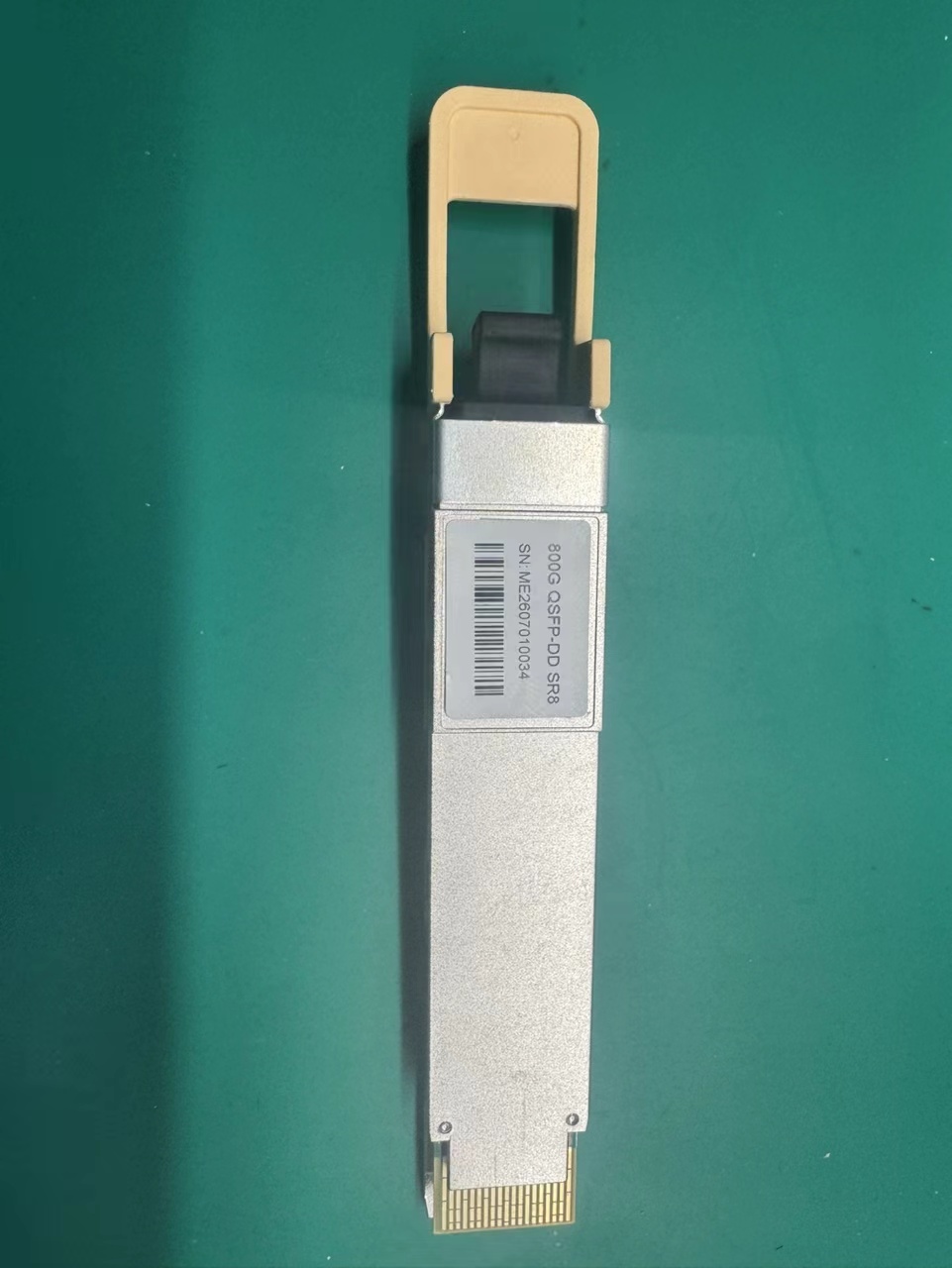

800G QSFP-DD SR8 PAM4 850nm 100m DOM Single MPO-16/APC Multimode Optical Transceiver

800GBASE-QSFP-DD SR8 optical transceiver operates at an 850nm wavelength, supporting transmission distances up to 100 meters over OM4 multimode fiber (MMF) via a single MPO-16 interface. It supports 2×400G SR4 breakout applications, complies with multiple IEEE and CMIS standards, and is widely deployed in 800G Ethernet, data centers, and high-performance computing (HPC) networks.

Product Features

• Power consumption: ≤15 W
• Hot-pluggable, compliant with QSFP-DD MSA、CMIS Rev5.2
• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

Form Factor: QSFP-DD

Transmission Distance: 60m (OM3) /100m (OM4)

Connector Type: MPO-16/APC

Power Consumption: ≤15 W

Transmitter Type: VCSEL

Detector Type: PIN

Fiber Type: Multimode Fiber (MMF)

Electrical Modulation: 8x100G-PAM4

Optical Modulation: 8×100G-PAM4

Operating Temperature: 0~70 °C (32~158 °F)

Compliance: QSFP-DD MSA, CMIS Rev 5.2, IEEE 802.3bs
