400G

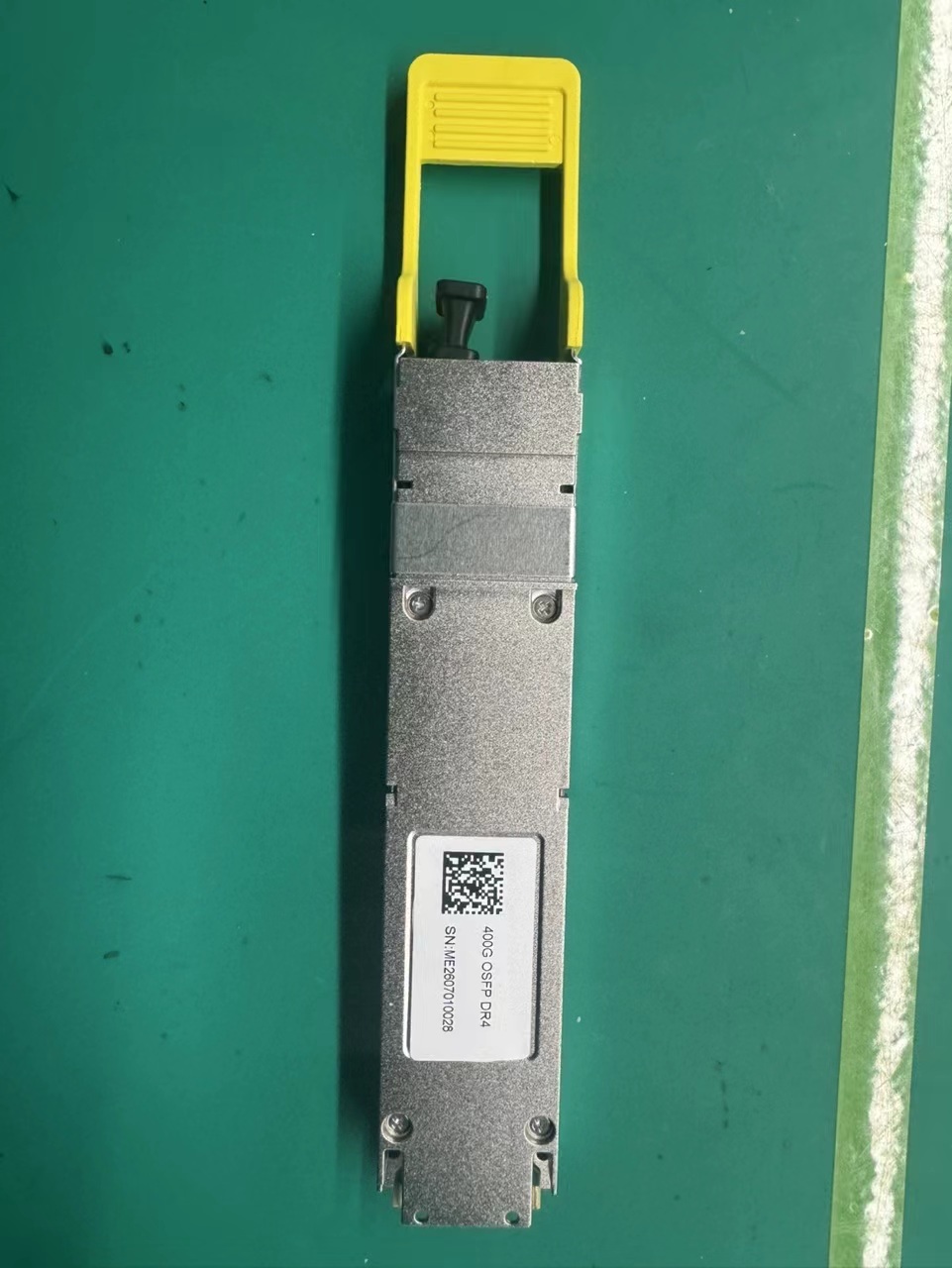

OSFP-RHS DR4 PAM4 1310nm 500m DOM MPO-12/APC Single-mode Optical Transceiver
This 400G OSFP‑RHS DR4 optical transceiver
adopts an MPO‑12/APC interface. It supports 500 m transmission over single‑mode
fiber using 4×100G
PAM4 technology, complies with the 400GBASE‑DR4 standard, and is suitable for
medium‑short haul high‑speed interconnections in data centers and HPC
applications.
Product
Features
-
Power
consumption: ≤10W
-
Hot-pluggable,
compliant with OSFP MSA and CMIS 5.2
-
Hardware
compatible and fully tested on real equipment to ensure superior
performance, quality and reliability
-
Class
1/1M laser product, RoHS compliant (lead-free)
-
30-day
free return, 5 years warranty, lifetime technical support
Technical
Specifications
-
Form
Factor: OSFP-RHS
-
Transmission
Distance: 500 m
-
Connector
Type: MPO-12/APC
-
Power
Consumption: ≤10 W
-
Transmitter
Type: SiPh
-
Detector
Type: PIN
-
Fiber
Type: Single-mode Fiber (SMF)
-
Electrical
Modulation: 4×100G-PAM4
-
Optical
Modulation: 4×100G-PAM4
-
Operating
Temperature: 0~70 °C (32~158 °F)
-
Compliance:
OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs
