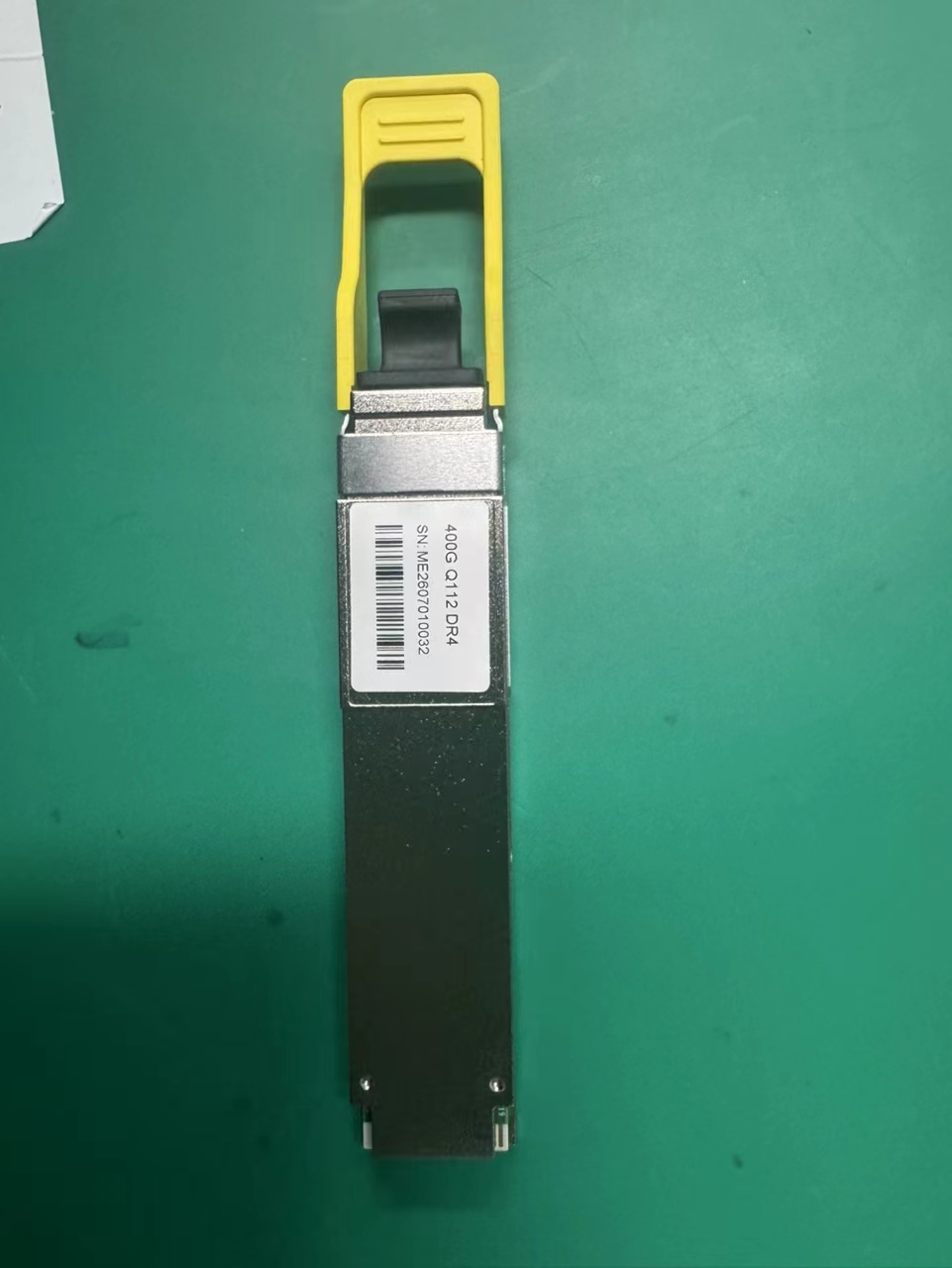

400G QSFP112 DR4 PAM4 1310nm 500m DOM MPO-12/APC

This 400GBASE-QSFP112 DR4 optical transceiver features an MTP/MPO-12 interface, supports transmission distances up to 500 meters over single-mode fiber (SMF), complies with relevant industry standards, and includes Digital Diagnostic Monitoring (DDM) capabilities. It is designed for high-bandwidth 400G interconnects in data center environments.

Product Features

• Power consumption: ≤9W
• Hot-pluggable, compliant with QSFP112 MSA、CMIS 5.0
• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

Form Factor: QSFP112

Transmission Distance: 500 m

Connector Type: MPO-12/APC

Power Consumption: ≤9 W

Transmitter Type: SiPh

Detector Type: PIN

Fiber Type: Single-mode Fiber (SMF)

Electrical Modulation: 4×100G-PAM4

Optical Modulation: 4×100G-PAM4

Operating Temperature: 0~70 °C (32~158 °F)

Compliance: QSFP112 MSA, CMIS Rev 5.2, IEEE 802.3bs
