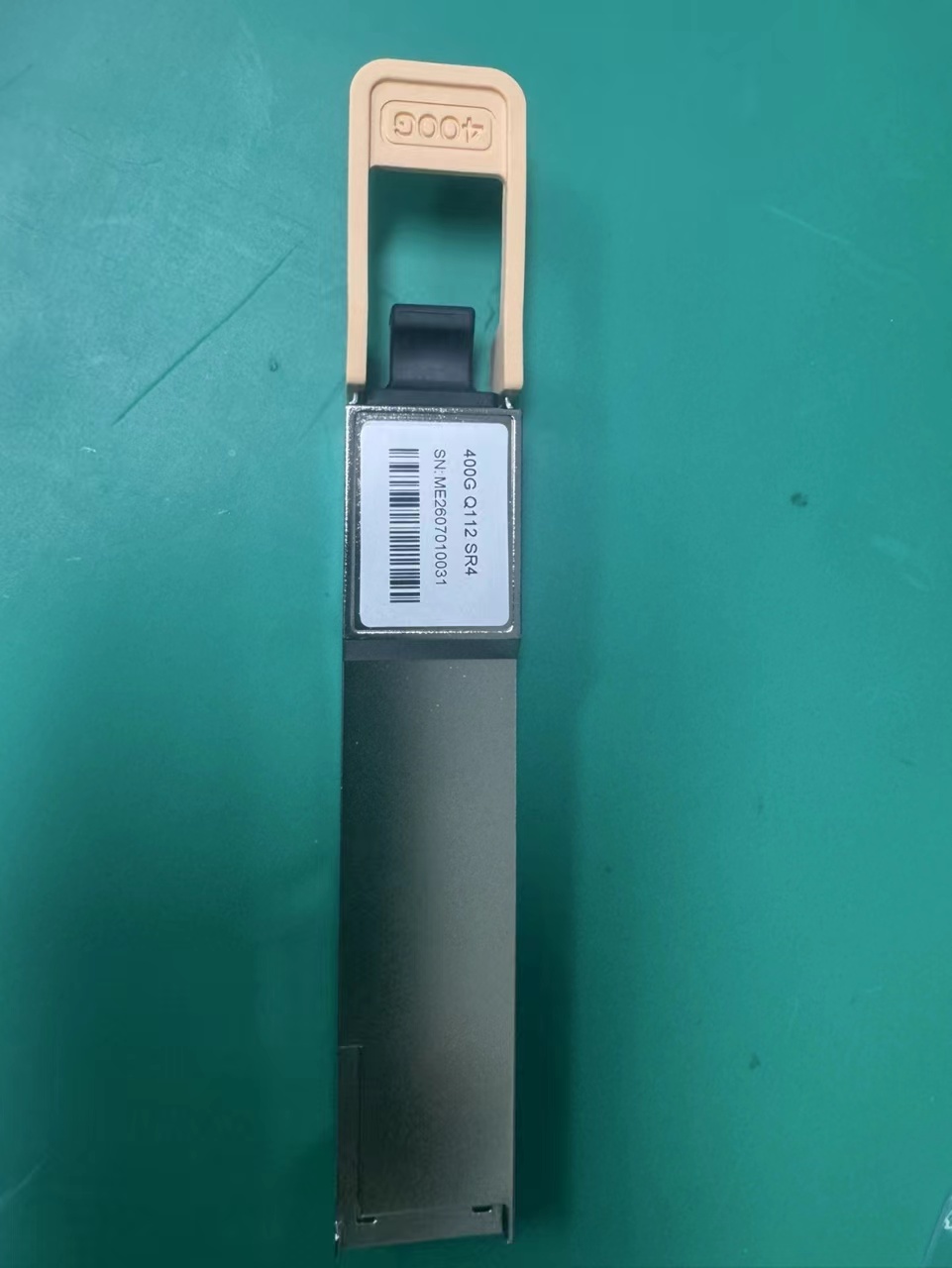

400G QSFP112 SR4 PAM4 850nm 100m DOM Single MPO-12/APC Multimode Optical Transceiver

400GBASE-QSFP112 SR4 optical transceiver features an MTP/MPO-12 interface, supports transmission distances up to 100 meters over OM4 multimode fiber (MMF), complies with relevant industry standards, and includes Digital Diagnostic Monitoring (DDM) capabilities. It is designed for 400G Ethernet and InfiniBand applications.

Product Features

• Power consumption: ≤9W
• Hot-pluggable, compliant with QSFP112 MSA、CMIS 5.0

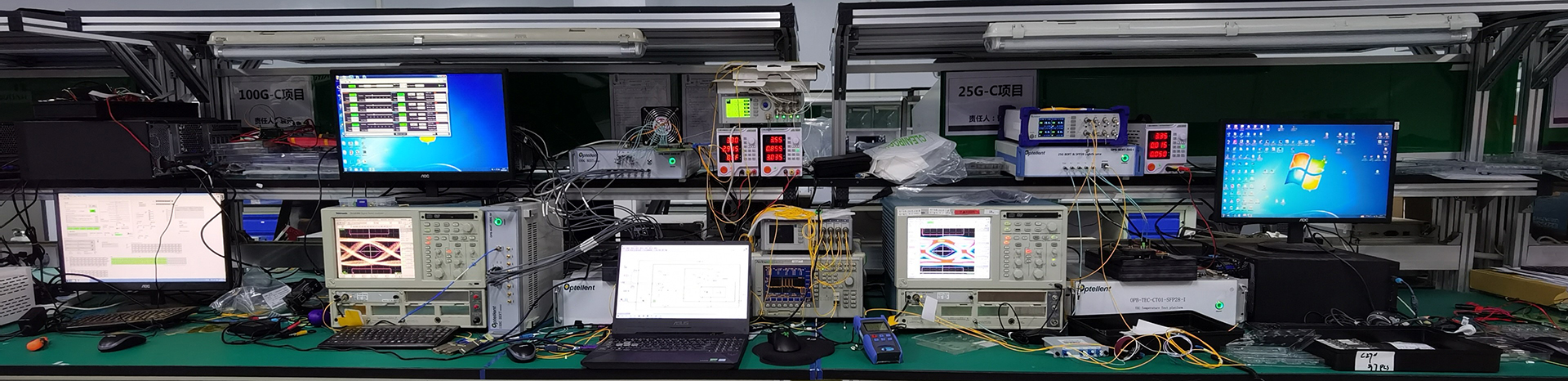

• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

Form Factor: QSFP112

Transmission Distance: 60mtrs (OM3) /100mtrs (OM4)

Connector Type: MPO-12/APC

Power Consumption: ≤9 W

Transmitter Type: VCSEL

Detector Type: PIN

Fiber Type: Multimode Fiber (MMF)

Electrical Modulation: 4×100G-PAM4

Optical Modulation: 4×100G-PAM4

Operating Temperature: 0~70 °C (32~158 °F)

Compliance: QSFP112 MSA, CMIS Rev 5.2, IEEE 802.3bs
