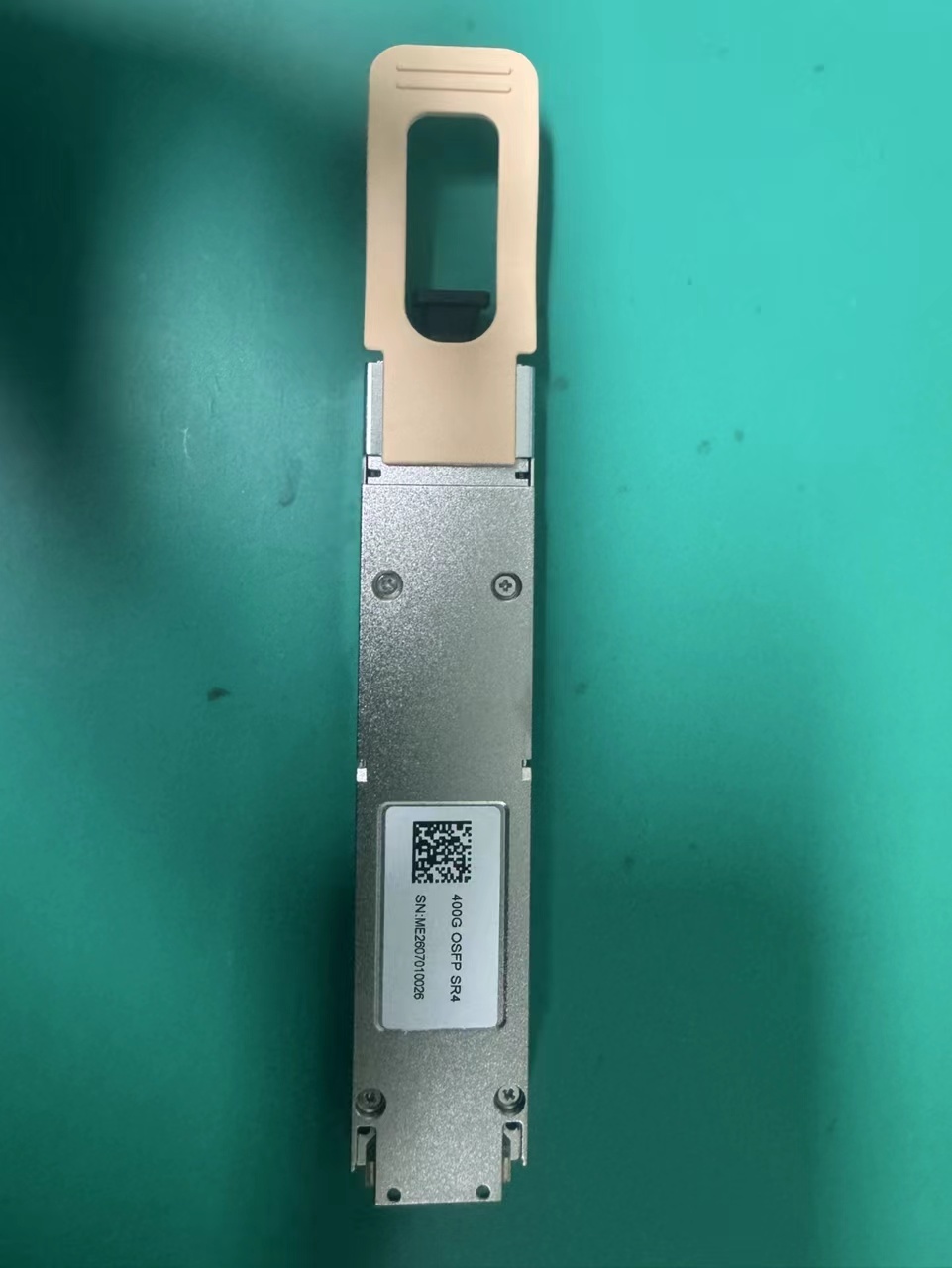

400G OSFP-RHS SR4 PAM4 850nm 100m DOM Single MPO-12/APC Multimode Optical Transceiver

This 400G OSFP-RHS SR4 optical transceiver features an MPO-12/APC interface and supports transmission distances up to 100 meters over OM4 multimode fiber (MMF) based on 4×100G PAM4 modulation. Compliant with the 400GBASE-SR4 standard, it is designed for short-reach, high-speed interconnects in data centers and High-Performance Computing (HPC) environments.

Product Features

• Power consumption: ≤9 W
• Hot-pluggable, compliant with OSFP MSA、CMIS Rev5.2
• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

Form Factor: OSFP-RHS

Transmission Distance: 60m (OM3) /100m (OM4)

Connector Type: MPO-12/APC

Power Consumption: ≤9 W

Transmitter Type: VCSEL

Detector Type: PIN

Fiber Type: Multimode Fiber (MMF)

Electrical Modulation: 8x50G-PAM4

Optical Modulation: 4×100G-PAM4

Operating Temperature: 0~70 °C (32~158 °F)

Compliance: QSFP-DD MSA, CMIS Rev 5.2, IEEE 802.3bs
