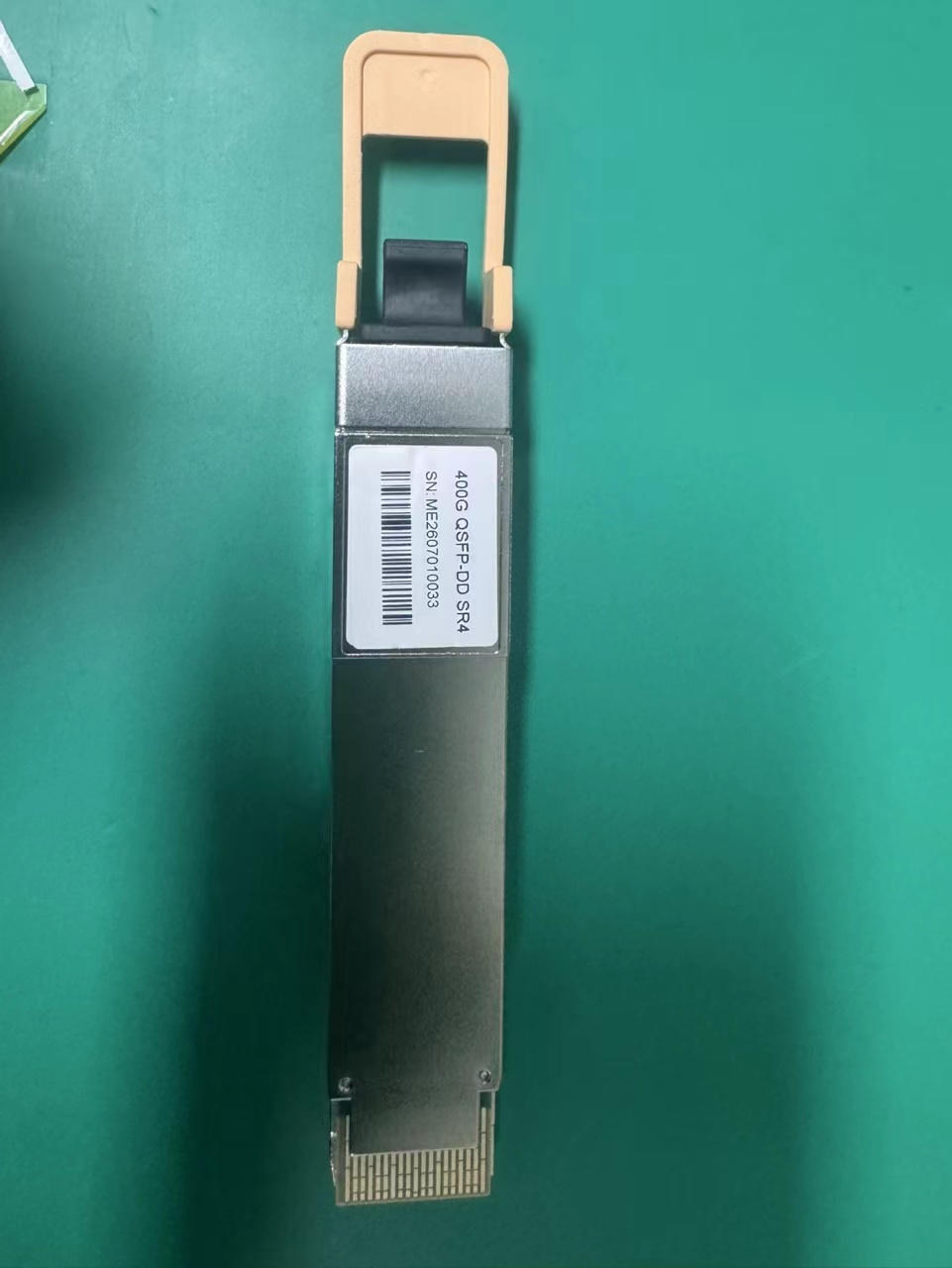

400G QSFP-DD SR4 PAM4 850nm 100m DOM Single MPO-12/APC Multimode Optical Transceiver

400GBASE-SR4 optical transceiver featuring an MTP/MPO-12 connector, supporting transmission distances up to 100 meters over parallel OM4 multimode fiber (MMF). Compliant with the QSFP-DD MSA, CMIS 5.2 interface, and 400GAUI-4 standards. Equipped with built-in Digital Diagnostic Monitoring (DDM) for real-time acquisition of operating parameters. Designed for 400G Ethernet and InfiniBand applications.

Product Features

• Power consumption: ≤8 W
• Hot-pluggable, compliant with QSFP-DD MSA、CMIS Rev5.2
• Hardware compatible and fully tested on real equipment to ensure superior performance, quality and reliability
• Class 1/1M laser product, RoHS compliant (lead-free)
• 30-day free return, 5 years warranty, lifetime technical support

Technical Specifications

Form Factor: QSFP-DD

Transmission Distance: 60m (OM3) /100m (OM4)

Connector Type: MPO-12/APC

Power Consumption: ≤8 W

Transmitter Type: VCSEL

Detector Type: PIN

Fiber Type: Multimode Fiber (MMF)

Electrical Modulation: 8x50G-PAM4

Optical Modulation: 4×100G-PAM4

Operating Temperature: 0~70 °C (32~158 °F)

Compliance: QSFP-DD MSA, CMIS Rev 5.2, IEEE 802.3bs
